Lubrication Systems (Single-Line)
Series 2200 Self-Contained Conveyor Lubricator
Available for Enclosed Track, I-Beam, Power and Free and other conveyor types.
Mighty Lube Single Line Conveyor Lubrication Systems are an all-in-one lubricator made for lubricating a single conveyor line. This unit consists of a 5.5 gallon tank on top of the lubricating head unit. As with all Mighty Lube lubricators, the single-line unit properly lubricates conveyor chains and open trolley bearings. As a result, the conveyor life is extended and manufacturing efficiency is increased. And unlike some lubrication methods in use today, Mighty Lube automatic conveyor lubricators place a precise shot of lubricant at each lubrication point, eliminating waste and droplets.
Patented Microprocessor Controls make operation for Mighty Lube conveyor lubrication systems as easy as pushing a button. The simple step-by-step menu can be programmed easily, with no complicated readouts or switches to set.
Mighty Lube Series 2200 Benefits & Features
- Available for most conveyor configurations
- An ideal solution and excellent value for customers with one or only a few conveyor lines
- Requires no plant air for operation
- Economical to operate
- Easy to install: Simply weld the supplied modified rail/track section into the existing rail/track, hook up the power, and begin lubricating!
Each Mighty Lube Self-Contained conveyor lubricator is engineered to include:
- 5.5 gallon capacity heavy duty steel reservoir with solvent-resistant finish
- Lubricant level gauge
- Low level audio alarm
- Programmable microprocessor controller includes:
- Easy to use keypad
- Password access for authorized users
- LCD display showing current conveyor chain link, chain speed, and programmed values
- Adjustable parameters include lubricant cycles, lubricant shot volume, chain link number, and chain pitch
- Additional inputs to control other lubrication points, other lubricators, and automatic greasers for sealed trolley wheels.
- During lubrication cycles, lubricant pump is activated by conveyor power chain motion
- Memory circuit to automatically resume if power is interrupted
- Extended range proximity sensor to detect lubrication points
- Premounted on a modified section of rail/track ready to be welded into place
- Operating voltage – 120VAC, 60 Hz.

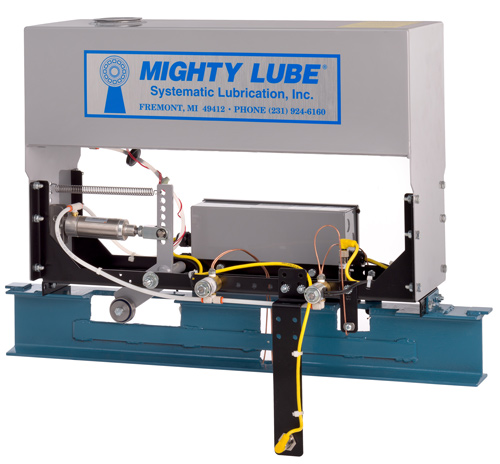

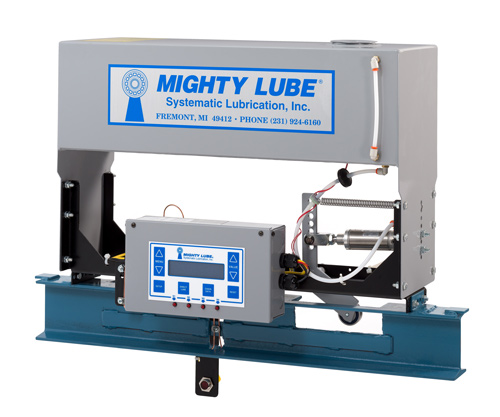

I-Beam Self-Contained Lubricators
Model #2203L
3″ Monorail Overhead Conveyor Lubricator
Lubricates: Chain Pins and Trolley Bearings
Model #2204L
4″ Monorail Overhead Conveyor Lubricator
Lubricates: Chain Pins and Trolley Bearings
Model #2206L
6″ Monorail Overhead Conveyor Lubricator
Lubricates: Chain Pins and Trolley Bearings
Units are also available for most other conveyor manufacturers.
Mighty Lube I-Beam Features
- Fully programmable user interface
- Self-Contained Units require a 120VAC power source
- Includes built-in power supply and reservoir
- Lubricant Capacity: 5.5 gallons with low level alarm.

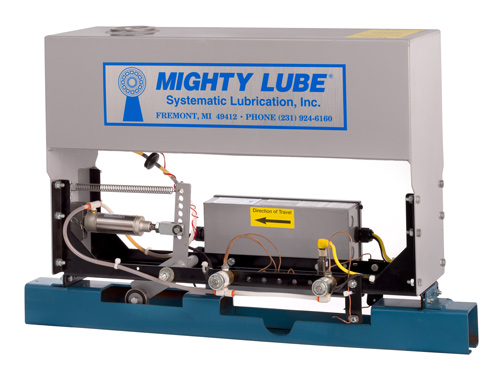

Self-Contained Lubricators for Enclosed Track Type Conveyors
Model #2200L
For Richards-Wilcox Overhead Conveyors
Lubricates: Chain Pivots, Horizontal Bearings and Vertical Bearings
Model #2201L
For Unibilt or Rapid Overhead Conveyors
Lubricates: Chain Pivots, Horizontal Bearings and Vertical Bearings
Model #2202L
For Double Vertical Bearing Chain Conveyors
Lubricates: Chain Pivots, Horizontal Bearings and Single and Double Vertical Bearings
Model #2210L
For Round Tube Overhead Conveyors
Lubricates: Chain Pivots, Horizontal Bearings and Vertical Bearings
For all MODEL #2010L Units: Customer Must Supply a 30″ Rail Section for Pre-Mounting
Units are also available for most other conveyor manufacturers.
Mighty Lube Enclosed Track Type Conveyors Features
- Fully programmable user interface
- Self-contained Units require a 120VAC power source
- Includes built-in power supply and reservoir
- Lubricant Capacity: 5.5 gallons with low level alarm.

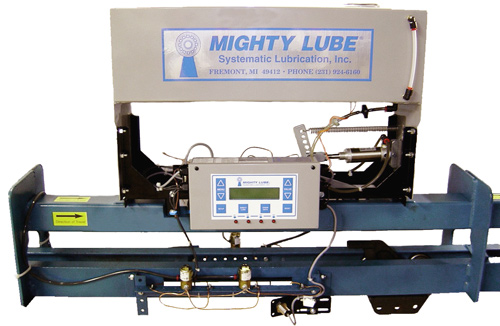

Power & Free Self-Contained Lubricators
Model #2205L
Power and Free Conveyor Lubricator For Richards-Wilcox Conveyors
Lubricates: Chain Pivots and Horizontal/Vertical Bearings on power chain, Load Bearings and Guide Rollers on the Free Carrier
Model #2207L
Power and Free Conveyor Lubricator For Unibilt or Rapid Conveyors
Lubricates: Chain Pivots and Horizontal/Vertical Bearings on power chain, Load Bearings and Guide Rollers on the Free Carrier
Model #2208L
Power and Free Conveyor Lubricator For 3″ I-Beam
Lubricates: Chain Pins and Trolley Bearings on the Power Chain, Load Bearings and Guide Rollers on the Free Carrier
Model #2209L
Power and Free Conveyor Lubricator For 4″ I-Beam
Lubricates: Chain Pins and Trolley Bearings on the Power Chain, Load Bearings and Guide Rollers on the Free Carrier
NOTE: For all power & free units the customer must supply a rail section with at least 36″ between the yokes for pre-mounting.
Mighty Lube Power & Free Lubricators
- Fully Programmable User Interface
- Includes Built-in power supply and reservoir
- Lubricant Capacity: 5.5 gallons with low level alarm.
Lubricator Equipment Add-On Options
Chain Wear Monitor
Provides on-demand chain pin wear for each link.
Remote Fill System
Eliminates the need to climb a ladder in cases where the conveyor is high above floor level.
Power Supplies
Power supplies for other operating voltages.
